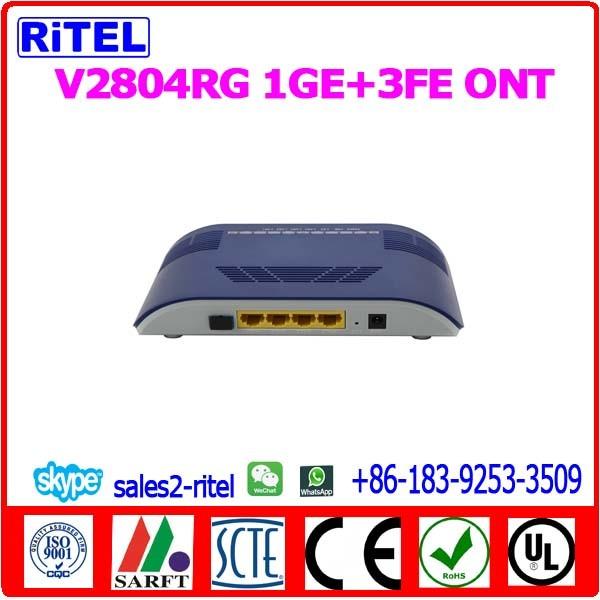

V2804RG 1GE+3FE GPON ONU

Brand Name : RITEL or OEM

Model Number : V2804RG 1GE+3FE GPON ONU

Certification : CE, UL, ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Price : $10.00~$100.00/PC

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 20000pcs per months

Delivery Time : Depends on quantity

Packaging Details : Carton, box

Contact Now

GPON V2804RG 1GE+3FE ONU

Description

V2804RG terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. These boxes are based on the mature Gigabit GPON technology, which have high ratio of performance to price, Layer 2/3. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as ITUT984.x and technical requirement of GPON Equipment from China Telecom.

Features:

> Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
> Integrated OMCI remote configuration and maintenance function.
> Support rich QinQ VLAN functions and IGMP Snooping multicast features.
> Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
> Support NAT, Firewall function.
> Support IPv4 and IPv6 dual stack.
> The WAN port supports bridge, router and bridge/router mixed mode.

Specification:

Technical items Description
V2804RG
Main chip Realtek
PON interface 1 GPON interface, SC single-mode/single-fiber, Upstream 1.25Gbps,Downstream 2.5Gbps
PON Port Type BOSA
Wavelength GPON Tx 1310nm, GPON Rx 1490nm
Sensitivity <-27dBm(PX20+)
Overload >-8dBm(PX20+)
Optical interface SC/PC connector
LAN interface 1*10/100/1000Mbps+3*10/100Mbps auto adaptive Ethernet interfaces, RJ45
Indicators 9 indicators, for status of power supply, PON, LAN .
DC power supply +12V, external AC-DC power adaptor
Power consumption ≤9W
Operating condition Operating temp: -5~+55C
Operating humidity:10~90%(non-condensed)
Storage condition Storage temp: -30~+60C
Storage humidity:10~90%(non-condensed)
Dimension 185mm*33mm*122mm(W*H*D)
Net weight 0.25Kg

Data Service Functions


> Full speed non-blocking switching.
> 2K MAC address table.
> 64 full range VLAN ID.
> Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.
> Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.
> Support auto polarity detection of Ethernet ports (AUTO MDIX).
> Integrated IEEE802.1p QoS with four level priority queues.
> Support IPv4 IGMP snooping and IPv6 MLD snooping.
> Support bridge, router and bridge/router mixed mode.
